Accessing Datasets
OSN supports a RESTful API that is compatible with the basic data access model of the Amazon S3 API. Any software that complies with that API can access data stored on the OSN.
There are three common methods for connecting to and using OSN resources:
OSN portal built-in web tools
Third party desktop applications (e.g. Cyberduck, Rclone)
Third party data management server applications (e.g. Globus and iRods)
OSN Portal Built-in Web Tools
The OSN portal (portal.osn.xsede.org) supports a simple UI that allows end users to browse allocations and to upload and download objects via the browser. This mode of access is most appropriate for browsing a dataset and uploading/downloading smaller files (typically <100G).
To use the built-in browser, a user logs onto the OSN portal and clicks on one of the allocations that they have been granted access to. This brings the user to a searchable/sortable table listing of the allocation and its subdirectories. Clicking on any of the objects shown initiates a download of the object to the local disk.
To upload a file, the user locates the file on their local filesystem and drags the file to the browser window. This initiates an upload to the bucket location that the user is currently browsing.

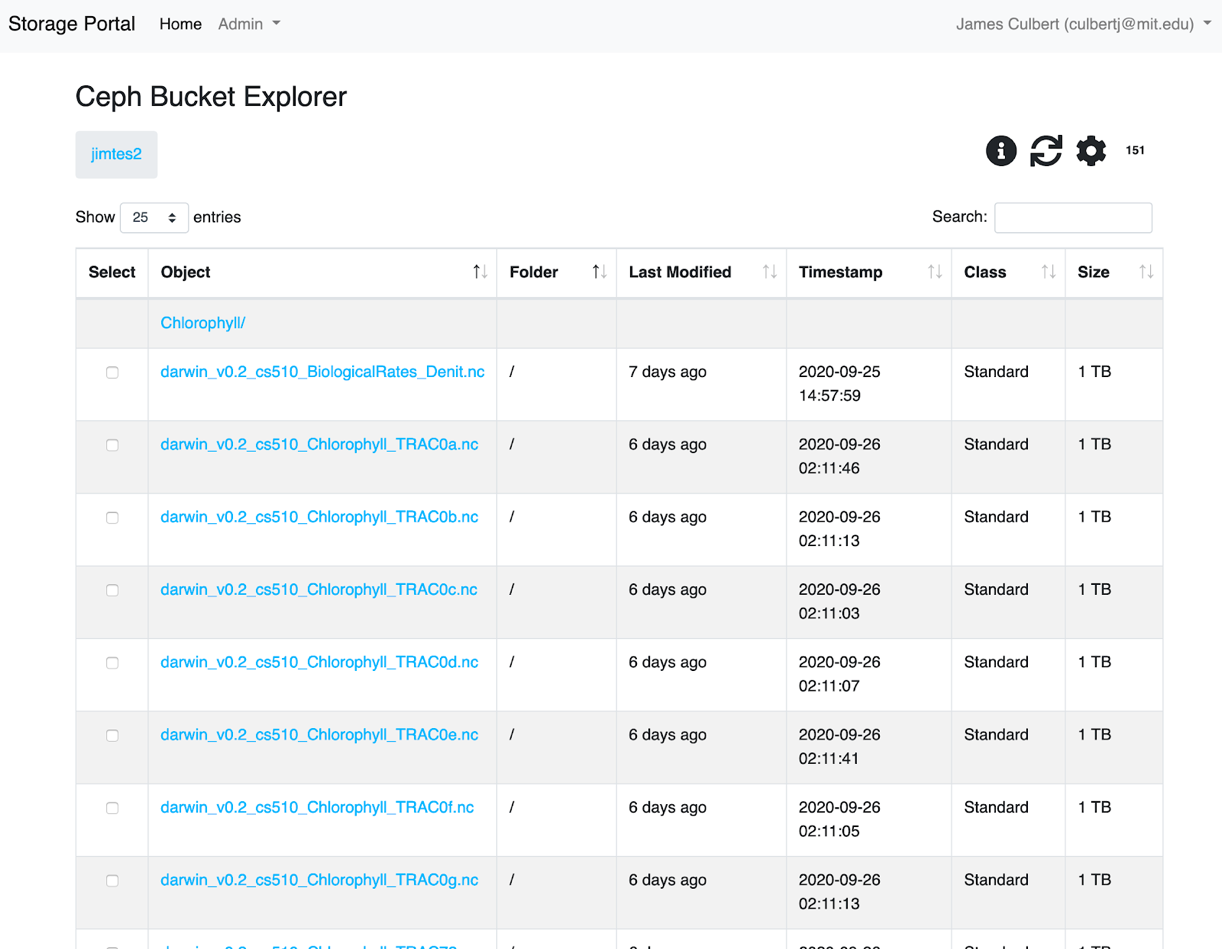

OSN Basic Bucket Browser
OSN Basic Bucket Explorer
Third Party Applications
There are numerous commercial and open source software tools for moving files to and from S3 buckets. These tools provide more sophisticated capabilities than the built-in browser tool including transfer management, multi-upload management, and provide configuration options that can help optimize data transfer for a given computer/network environment.
To use these tools, you will need to retrieve a pair of keys that are used to access the buckets stored on OSN. To retrieve these keys, you can contact your data manager and she will either give you keys or create an account for you on the OSN portal where you can retrieve these keys. If your data manager creates a portal account for you and gives you access to the keys you can visit OSN Portal to retrieve them; the allocations you have access tto and their associated keys will be listed on your home page.
OSN Portal User Home page

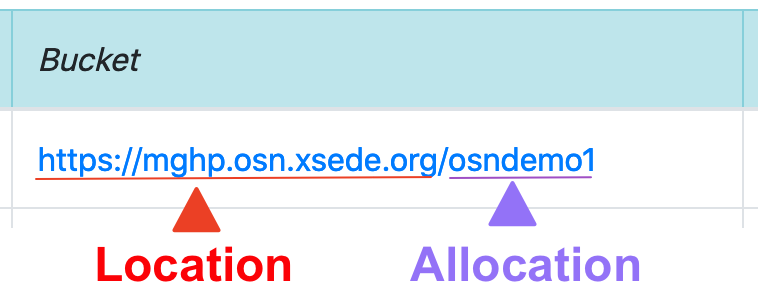

Note that the “Bucket” information displayed in the portal has two components (this will be important when you configure third party tools). The bucket information contains the OSN site/pod location and the specific allocation on that pod.
Cyberduck
Cyberduck is a popular file transfer tool that supports the S3 API. The following describes how to configure Cyberduck to connect to an OSN resource. Cyberduck is a “cloud storage browser” for Mac and Windows that supports multiple storage providers/protocols. The software may be downloaded at: The Cyberduck Download Page
Using Cyberduck with OSN is straightforward.
Visit the OSN portal to retrive your Bucket location and allocation names (see image below)
Visit the OSN portal and retrieve your allocation keys or retrieve them from the data manager for your project
Open Cyberduck and select the bookmarks icon (see image below)
Click the add icon at the bottom left of the screen to create the bookmark
Edit the new bookmark to point at the desired OSN pod using you allocation key pair
Selecting the bookmarks page and adding new bookmark
When specifying the server, use the hostname portion of the location (i.e. if the location is https://mghp.osn.xsede.org the hostname is “mghp.osn.xsede.org”).
When specifying “Port”, use 443 if the location starts with “https://”; use 80 if the location starts with “http://”.

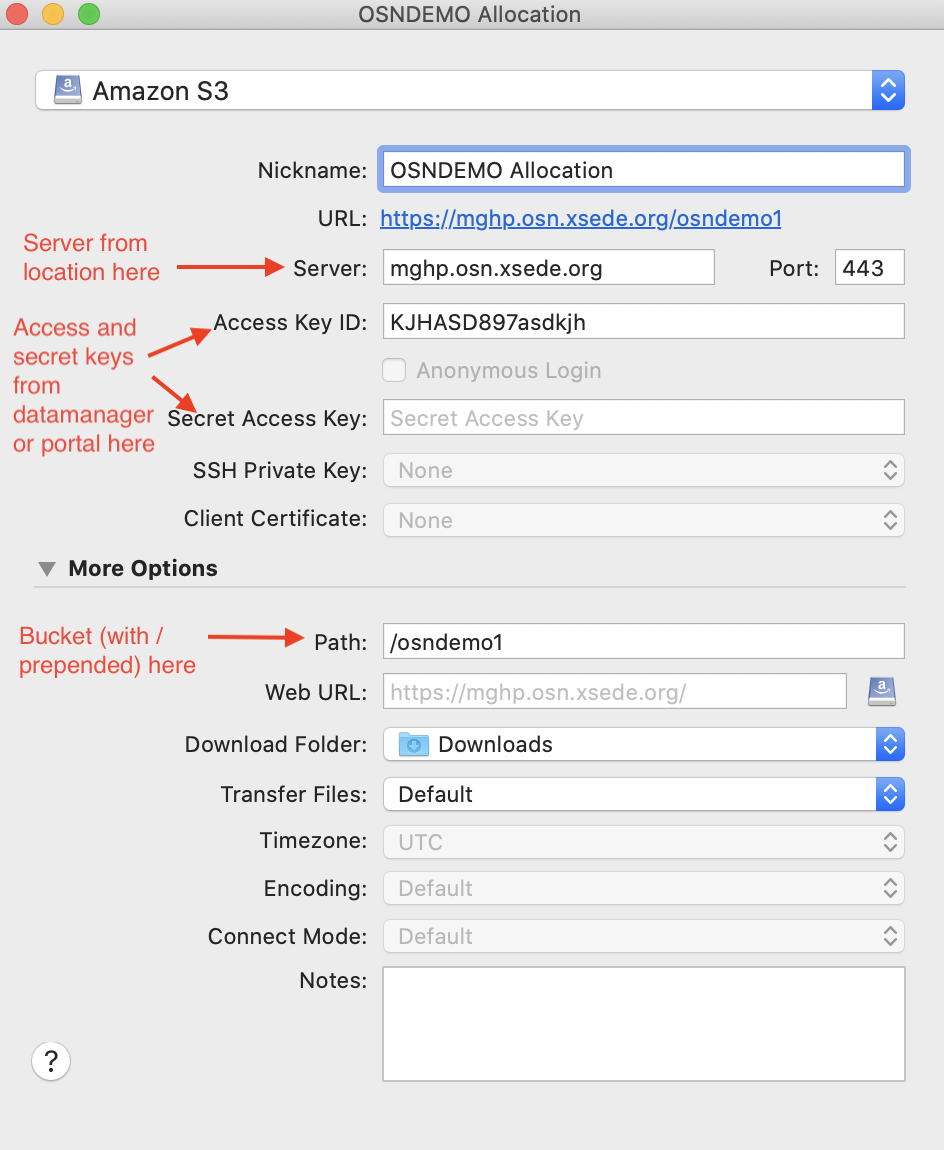

Adding OSN pod and user information to bookmark
Anonymous Access Data Sets
Some datasets provide anonymous read access; if you are accessing buckets anonymously, type “anonymous” into the Access ID portion and Cyberduck will then select the grayed out anonymous access box in the window.
Using anonymous access as your user
Exit the window for the bookmark to save.
Browsing, Uploading, and Downloading
Once a bookmark is created, you can use it to access data by double-clicking the bookmark. This logs your user in and lists the contents of the dataset.
Note: If your buckets have large object counts, you will need to increase the Timeout settings for connections.
Go to Preference > Connection and change the box next to Timeout for opening connections (seconds) and change the setting to 90 seconds.
Directory listing within bucket
Cyberduck client is a full-fledged transfer client so desktop up/downloads can be easily performed for data sets.
The tool supports multiple upload/download streams, chunking, pausing and restarting.
